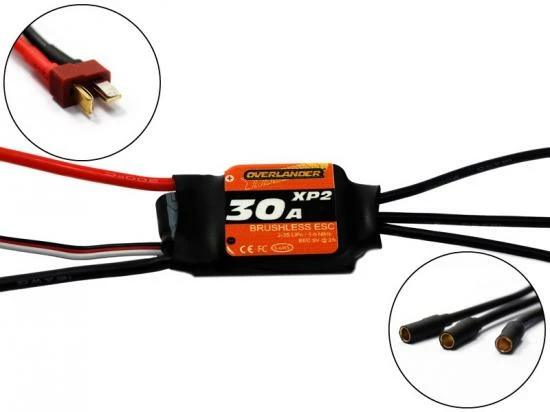

Overlander XP2 30A Brushless ESC – RTF Speed Controller

Overlander XP2 30A Brushless ESC – RTF Speed Controller READY TO FLY! – Now fitted with Deans connector for the battery and 3.2mm gold connectors for the motor! XP2 30A Brushless speed controller features * Full protection feature including low voltage, over-heat, throttle signal lost, startup protection and self-check. * Compatible with most sensor less brushless motors. * Excellent startup performance, great throttle linear and quick throttle response. * Support highest motor speed 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles). * Easy configured with program card. * System can automatically detect throttle neutral point. * 3 timing modes can match different motors. * 3 modes of start force adjustment. *Governor mode for heli * Reverse motor direction SPECIFICATION * Low resistance PCB * Input Voltage: Support 2-3 cell Li-Po, 5- 9 Nimh * Continue current: 30A, (Burst max 40A 10 secs) * BEC output: 2A/5V * Dimensions: 42 x 25 x 8 mm * Weight: 23g * Blue Motor Wire 14AWG * Red and Black Battery Wire 12AWG Manufacturers recommend Servo numbers to be limited to 1 servo per 1A of BEC. At Overlander we say you should consider a separate RX pack or uprated UBEC when using 4 servos or more
