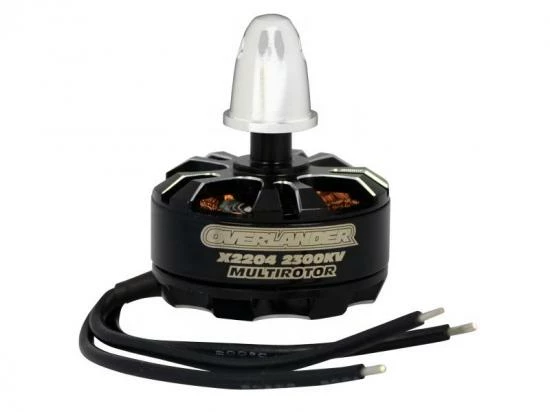

Overlander X2204 Multi-Rotor Motor 2300KV (Clockwise)

Excellent for use within 250 size FPV Mini Racing Quadcopters and other small multi-rotor aircraft.



Suitable for use with KK260, FPV250, ZMR250, Tarot Mini 250, PeasantCopter 270, EMAX250 NightHawk, ZMR250 V2, Arris X-Speed, Warthox MiniCP, Porta Quad 250, AirHog 210, Krieger 225, Demon Ghost 220, MXP230 FPV, Lumenier QAV250, MXP230 Elite, Strider 250, among many more.

• Clockwise direction • 120 watt motor • 2-3 LiPo cells • 6-10 NiMH cells • Shaft Diameter 3mm • Motor weight 25gm • Prop size from 6x3in to 5x3in*

* NOTE: Propellers should always be checked with a Watt Meter to determine the correct diameter and pitch. The larger the propeller, the lower the number of cells.

For a complete performance package, use in conjunction with our 20A XP2 QUAD ESC.

Overlander Multi-Rotor motors are designed with maximum performance in mind! Built using only the highest quality components – from Neodym magnets, to special high temperature wire for windings – these motors are manufactured to Overlander’s stringent and demanding standards. With the use of advanced CNC machine tools, our manufacturers have been able to achieve the unique Overlander motor design that offers minimum weight and enhanced heat dissipation.

These motors have been built specifically to optimise the performance and power of your multi-rotor applications. They are unmatched in quality and value, and the performance speaks for itself!

Overlander X2204 Multi-Rotor Motor 2300KV (Clockwise) Specification:

• SKU: 3126
• Weight (g): 25
• AWG: N/A
• KV: 2300
• Wattage: 120
• Inrunner/Outrunner: Outrunner
• ESC: 20A
