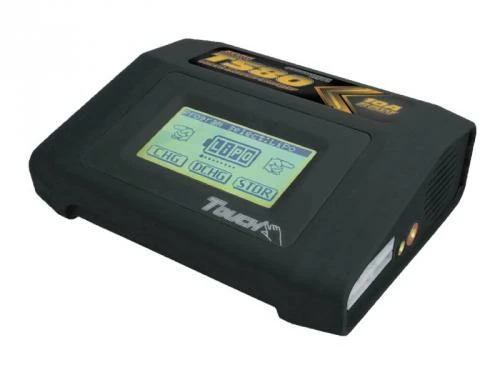

The Overlander TS-80 AC/DC 10A 80W Touch Screen Charger has an optimised operating system that allows you to easily set up and monitor the charging/discharging process via the touch screen. It has a high-power and high-performance circuit, with a maximum output of 80W, a maximum charge current of 10A and a maximum discharge current of 2A. This charger can be used with a wide range of batteries with different chemistries.

This charger features:

► Balance mode for Lithium battery packs: you do not require an additional balancer to balance the voltage when charging a Lithium (LiPo/LiFe/LiIon) pack.

► Individual cell monitoring: the charger monitors and balances each cell individually during the charging/discharging process.

► ‘Fast’ and ‘Storage’ modes for Lithium packs: the ‘Fast’ mode reduces charging time, and the ‘Storage’ mode control the nominal voltage of the battery to make it suitable for long-term storage.

► Cyclic charging/discharging for NiMH/NiCd packs: allows you to perform 1-4 cycles of charge>discharge or discharge>charge continually for battery refreshing and balancing.

► Safety features: including delta-peak sensitivity, capacity limit, temperature limit (when additional temperature prode is connected – sold seperately: SKU 2598), charge time limit. input current check and an automatic cooling fan.

Overlander TS80 Specifications:

• Operating Voltage Range: AC 100-240VDC 10-18V
• Charge Power: max 80W
• Discharge Power: max 10W
• Charge Current Range: 0.1-10A
• For Programmable Power Supply: 10A 80W
• Discharge Current Range: 0.1-2A
• Current Drain for Balancing LiPo: 200mAh/cell
• NiCd/NiMH Battery Cell Count: 1-15 cells
• Lithium Battery Cell Count: 1-6 cells
• PB Battery Voltage: 2-20V



Spec

• Brand: Overlander
• Part No: OL-3027
• Barcode: 5060470210175
• Input Voltage:
  • 12V
  • 240V (UK mains)
• Included Connectors:
  • 4mm Banana Sockets
  • Deans
  • XH LiPo Balancers
• Chemistry:
  • LiPo
  • NiMh / NiCd
  • Sealed Lead Acid
