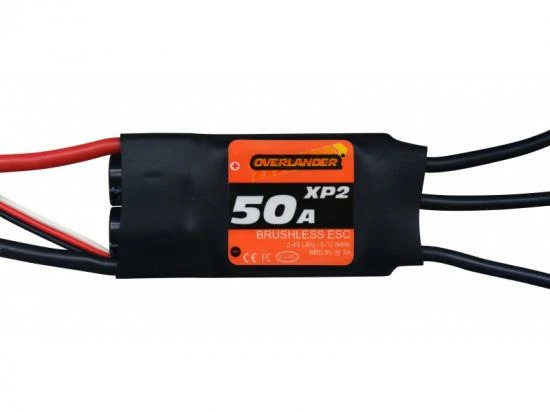

Overlander Overlander XP2 50A Brushless Speed Controller ESC

Overlander XP2 50A Brushless ESC Speed Controller

DESCRIPTION

This series of speed controllers have high technology and perfect function. Aiming at none-hall direct current brushless motors, they can set several parameters through program card or key on ESC and are convenient to use.
XP2 50A Brushless speed controller features
• Full protection feature including low voltage, over-heat, throttle signal lost, startup protection and self-check.
• Compatible with most sensor less brushless motors.
• Excellent startup performance, great throttle linear and quick throttle response.
• Support highest motor speed 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles).
• Easy configured with program card.
• System can automatically detect throttle neutral point.
• 3 timing modes can match different motors.
• 3 modes of start force adjustment.
• Governor mode for heli
• Reverse motor direction

SPECIFICATION

• Low resistance PCB
• Input Voltage: Support 2-4 cell Li-Po, 5-12 Nimh
• Continue current: 50A, (Burst max 70A 10 secs)
• BEC output: 3A/5V
• Dimensions: 60x28x8 mm
• Weight: 38g
• Blue Motor Wire 14AWG
• Red and Black Battery Wire 12AWG

Manufacturers recommend Servo numbers to be limited to 1 servo per 1A of BEC. At Overlander we say you should consider a separate RX pack or uprated UBEC when using 4 servos or more
