Overlander Overlander XP2 50A Brushless ESC – RTF Speed Controller

Overlander XP2 50A Brushless ESC – RTF Speed Controller

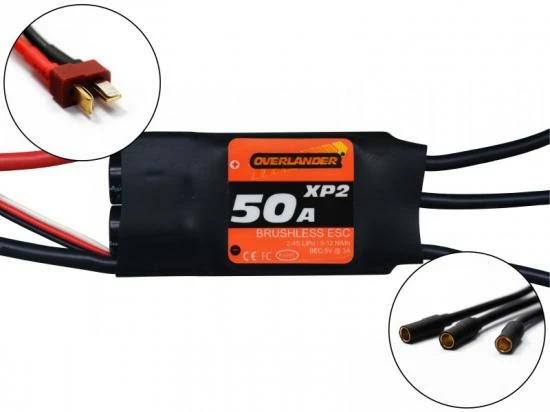

READY TO FLY! Now fitted with Deans connector for the battery and 3.5mm gold connectors for the motor!

DESCRIPTION

This series of speed controllers have high technology and perfect function. Aiming at none-hall direct current brushless motors, they can set several parameters through program card or key on ESC and are convenient to use.
XP2 50A Brushless speed controller features
• Full protection feature including low voltage, over-heat, throttle signal lost, startup protection and self-check.
• Compatible with most sensor less brushless motors.
• Excellent startup performance, great throttle linear and quick throttle response.
• Support highest motor speed 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles).
• Easy configured with program card.
• System can automatically detect throttle neutral point.
• 3 timing modes can match different motors.
• 3 modes of start force adjustment.
• Governor mode for heli
• Reverse motor direction

SPECIFICATION

• Low resistance PCB
• Input Voltage: Support 2-4 cell Li-Po, 5-12 Nimh
• Continue current: 50A, (Burst max 70A 10 secs)
• BEC output: 3A/5V
• Dimensions: 60x28x8 mm
• Weight: 38g
• Blue Motor Wire 14AWG
• Red and Black Battery Wire 12AWG
• Fitted with 3.5mm gold connectors

Manufacturers recommend Servo numbers to be limited to 1 servo per 1A of BEC. At Overlander we say you should consider a separate RX pack or uprated UBEC when using 4 servos or more
